A membrane switch is an integrated operating system that combines key functions, indicator components, and an instrument panel. It consists of four parts: the panel, upper circuit, isolation layer, and lower circuit. When the membrane switch is pressed, the contact on the circuit deforms downward, connecting with the electrode plate of the lower circuit. Once the finger is released, the contact bounces back, disconnecting the circuit and triggering a signal.
|
| |
OEM Specifications:
| Customized Membrane Switch | |||
| Item | Details | Item | Options |
| Overlay Material | PET-Autotex series F150/200/250, V150/200/250, EBG130/180/250 etc. PC-G11,G42,GE8010,GE 8B35,etc. | Special Requirement | Medical, Waterproof grade of IP67, UV-resistant , Anti-Bacteria ,High or Low Temperature |
| Flame Retardant | UL 94-V0 , UL 94-V2 | Connector | Female and Male Connectors or ZIF Connector |
| Ink | SEIKO , MERLIA ,etc. | Surface | Embossed or Flat |
| Printing | Pantone or RAL Chart. | Touch | Tactile |
| Dome | PET(cover layer) | Lights | LED Lights |
| Spacer | PET | Dimension | Customized Per Drawing |
| Metal Dome | φ6 ， φ8 ， φ10 ， φ12 | Printing | Follow the Artwork |
| Circuit | PET Printed | Application | Used For Electronic Control Panel |
| Rear Adhesive | 3M467, 3M468, 3M9495 , 3M9448A,etc. | Overlay Adhesive | 3M467, 3M468, 3M9495 , 3M9448A,etc. |
| Total Thickness | 0.2 - 5.0 mm | Artwork / Drawing Format | CoreDraw , AI , Auto CAD |
Product's Specifications:

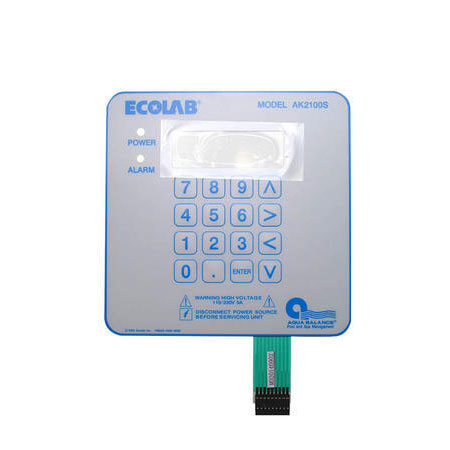

OEM waterproof membrane switches with customized matrix keys.
Connector: Pin space standard is 2.54mm（common),1.0mm(common）and 1.27mm.
It comprises six main layers: overlay, spacer adhesive, fixed dome tape, circuit adhesive, lower circuitry, and back adhesive tape.
Membrane switches are used in various applications, including remote controls, instrumentation, electronic scales, household appliances, human-machine interfaces, and mechatronic control systems.
