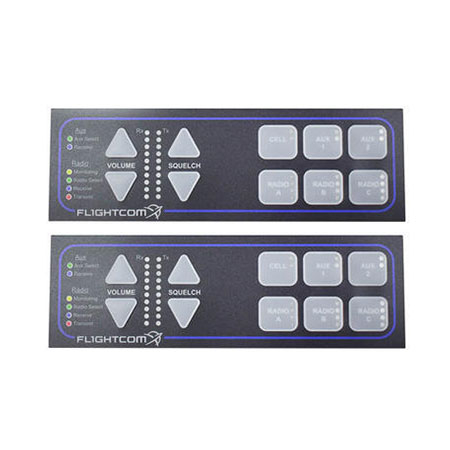

A graphic overlay, sometimes called a nameplate, is a printed graphic surface that is placed over top of the internal electronics of a product. The overlay serves multiple purposes. First, it protects the sensitive materials and components from environmental conditions and wear and tear.
Availability: | |
---|---|
Quantity: | |
A graphic overlay, sometimes called a nameplate, is a printed graphic surface that is placed over top of the internal electronics of a product. The overlay serves multiple purposes. First, it protects the sensitive materials and components from environmental conditions and wear and tear.
Technical Parameters:
Technical Details | Without tactile feedback | With tactile feedback by snap dome | With tactile feedback by key embossing |
Mechanical Parameters | Keystroke force : 2 N +/- 20% | Keystroke force : 2.5 N +/- 20% | Keystroke force : 1 to 4 N +/- 30 % |
Bounce Distance: 0,21 mm +/-15% | Bounce Distance : 0,48 mm +/-15% | Bounce Distance : 0,5 to 1 mm +/-15% | |
Contact type : Silver | Contact type : Dome+Silver | Contact type : Silver | |
Lifespan: 10 000 000 | Lifespan : 1 000 000 | Lifespan: 1 000 000 | |
Environmental Parameters | Work Temp. - 25°C - + 65°C | Work Temp.: - 25°C - + 65°C | Work Temp. : - 25°C - + 40°C |
Storage Temp. : - 30°C - + 85°C | Storage Temp. : - 30°C - + 85°C | Storage Temp.: - 30°C - + 70°C | |
Protection Class : IP 65 | Protection Class : IP 65 | Protection Class : IP 65 | |
Electrical Parameters | Normal operating voltage: 24 V Max. working voltage : 50 V Min.operating voltage: 1 V Normal operating current: 30 mA Max. controllable power : 500 mW Contact line resistivity : 1 ohm/cm (1 mm spacing) Dielectric strength : 250 Vrms. Insulation impedance at 100 V : > 100 Mohms Max.contact bounce : < 5 ms Compatible with TTL and CMOS circuits |
Product's Specifications:
Smart Electronics Printing Graphic Overlay.
Maxswall offers a wide range of embossing options: round embossing, pan embossing, edge embossing, key shape embossing,etc.
We have made many different types of membrane switch overlay for our customers, which is available to custom make any shape.
Workers are focusing on production, and we take each process seriously.
Careful quality control and meticulous packaging,we take every step of the process seriously.
ISO 9001 and ISO 14001 quality certification, Casio's trouble-free supplier honor certificate.
Most of our advanced technologies were certificated with patent.
Why Choose us?
>> Leading manufacturer with 30+ years experience.
>> Perfect quality control system. ISO9001&ISO14001 quality certificated.
>> Free for product design, free for laser sample.
>> Full range of product, your one-stop OEM manufacturer.
>> Professional technical support and after-sales service.
>> Good delivery cooperation to match your schedule.
>> Main serving customers are: Casio, Poly, JBL, Harman,SHURE, SENHEISER, Panasonic,Dyson,Pentair,etc.
Let Us Be Your Best OEM Partner!
