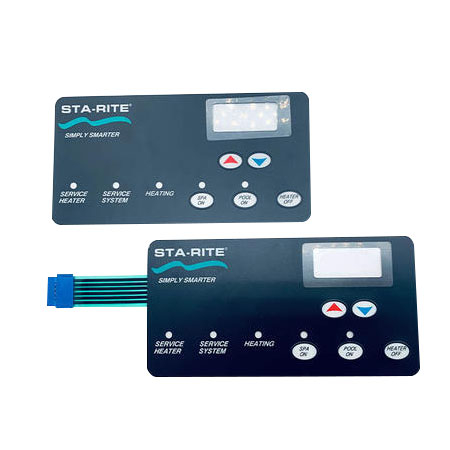

Membrane switch is a set of key functions, indicating components, instrument panel as one of the operating system.It consists of four parts: panel, upper circuit, isolation layer and lower circuit.Press the membrane switch, the contact on the circuit deforms downward, and the electrode plate of the lower circuit contacts conduction, after the finger is released, the contact on the circuit bounces back, the circuit is disconnected, and the circuit triggers a signal.
Availability: | |
---|---|
Quantity: | |
Membrane switch has strict structure, beautiful appearance and good sealing. With moisture-proof, long service life and so on. It was widely used in electronic communication, electronic measuring instruments, industrial control, medical equipment, automotive industry, intelligent toys, household appliances and other fields.
OEM Specifications:
Customized Membrane Switch | |||
Item | Details | Item | Options |
Overlay Material | PET-Autotex series F150/200/250, V150/200/250, EBG130/180/250 etc. PC-G11,G42,GE8010,GE 8B35,etc. | Special Requirement | Medical, Waterproof grade of IP67, UV-resistant , Anti-Bacteria ,High or Low Temperature |
Flame Retardant | UL 94-V0 , UL 94-V2 | Connector | Female and Male Connectors or ZIF Connector |
Ink | SEIKO , MERLIA ,etc. | Surface | Embossed or Flat |
Printing | Pantone or RAL Chart. | Touch | Tactile |
Dome | PET(cover layer) | Lights | LED Lights |
Spacer | PET | Dimension | Customized Per Drawing |
Metal Dome | φ6 , φ8 , φ10 , φ12 | Printing | Follow the Artwork |
Circuit | PET Printed | Application | Used For Electronic Control Panel |
Rear Adhesive | 3M467, 3M468, 3M9495 , 3M9448A,etc. | Overlay Adhesive | 3M467, 3M468, 3M9495 , 3M9448A,etc. |
Total Thickness | 0.2 - 5.0 mm | Artwork / Drawing Format | CoreDraw , AI , Auto CAD |
Product's Specifications:
Polycarbonate Membrane Swithes Factory Semitransparent.

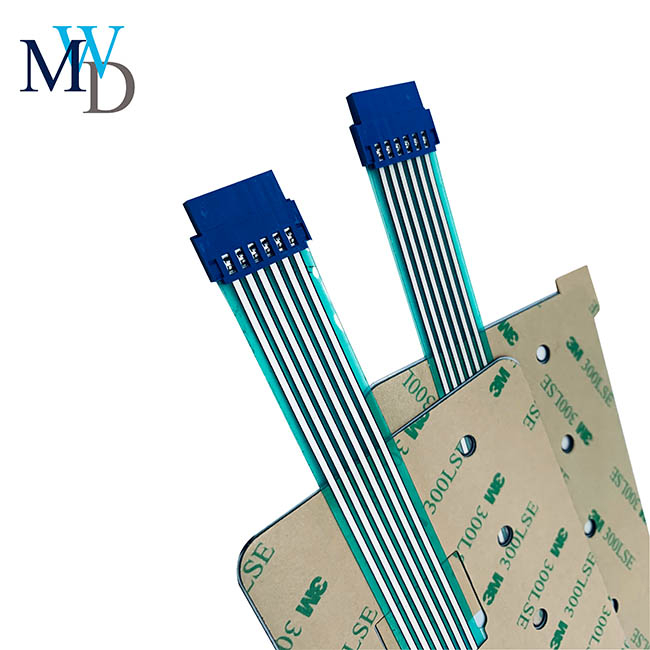

Connector: Pin space standard is 2.54mm(common),1.0mm(common)and 1.27mm.
Technical Parameters
Electrical Properties: | Working Voltage | Electric Current | Contact Resistance | Insulation Resistance | PET Pressure | Rebound Time | Circuit Resistance | Ink Pressure |
>25VDC | ≤50mA | 20~150Ω | ≥100MΩ (100VDC) | 2k DVC | ≤6ms | 50Ω,150Ω 350Ω,etc. | 100VDC | |
Mechanical Properties: | Closed Displacement | Pin Space Standard | Reliability Lifetime | Work Power | Siver Paste Wire Width | |||
0.1~0.2mm (No Tactile) 0.3~0.8mm (Embossed) | 2.54mm(common) 1.0mm(common) 1.27mm | ≥1million times | 180~350G power | ≥0.3mm, Min.Space 0.5mm,Wire burrs <⅓, Wire notch w<¼ width. | ||||
Environmental Properties: | Working Temperature | Storage Temperature | Atmospheric Pressure | |||||
-20℃ ~ +70℃ | -30℃ ~ +90℃ Moisture 95%±5% | 86~106KPa | / | |||||
Printing Index: | Print Size Deviation | Print Overlay Deviation | Print Color Deviation | No creases&paint stripping. | ||||
±0.20mm | ± 0.1mm/100mm Clear window clean, uniform color. | Within 10% No ink scattering&defective handwriting. | No scratches, pin holes or impurities. |
Application: The membrane switch are widely used in Remote controls,Instrumentation, Electronic scales, mechatronic control, household appliances, Human-machine interface.
Workers are focusing on production, and we take each process seriously.
ISO9001 and ISO 14001 high quality certification, and honored to be Casio's reliable supplier.
Membrane switch has strict structure, beautiful appearance and good sealing. With moisture-proof, long service life and so on. It was widely used in electronic communication, electronic measuring instruments, industrial control, medical equipment, automotive industry, intelligent toys, household appliances and other fields.
OEM Specifications:
Customized Membrane Switch | |||
Item | Details | Item | Options |
Overlay Material | PET-Autotex series F150/200/250, V150/200/250, EBG130/180/250 etc. PC-G11,G42,GE8010,GE 8B35,etc. | Special Requirement | Medical, Waterproof grade of IP67, UV-resistant , Anti-Bacteria ,High or Low Temperature |
Flame Retardant | UL 94-V0 , UL 94-V2 | Connector | Female and Male Connectors or ZIF Connector |
Ink | SEIKO , MERLIA ,etc. | Surface | Embossed or Flat |
Printing | Pantone or RAL Chart. | Touch | Tactile |
Dome | PET(cover layer) | Lights | LED Lights |
Spacer | PET | Dimension | Customized Per Drawing |
Metal Dome | φ6 , φ8 , φ10 , φ12 | Printing | Follow the Artwork |
Circuit | PET Printed | Application | Used For Electronic Control Panel |
Rear Adhesive | 3M467, 3M468, 3M9495 , 3M9448A,etc. | Overlay Adhesive | 3M467, 3M468, 3M9495 , 3M9448A,etc. |
Total Thickness | 0.2 - 5.0 mm | Artwork / Drawing Format | CoreDraw , AI , Auto CAD |
Product's Specifications:
Polycarbonate Membrane Swithes Factory Semitransparent.
Connector: Pin space standard is 2.54mm(common),1.0mm(common)and 1.27mm.
Technical Parameters
Electrical Properties: | Working Voltage | Electric Current | Contact Resistance | Insulation Resistance | PET Pressure | Rebound Time | Circuit Resistance | Ink Pressure |
>25VDC | ≤50mA | 20~150Ω | ≥100MΩ (100VDC) | 2k DVC | ≤6ms | 50Ω,150Ω 350Ω,etc. | 100VDC | |
Mechanical Properties: | Closed Displacement | Pin Space Standard | Reliability Lifetime | Work Power | Siver Paste Wire Width | |||
0.1~0.2mm (No Tactile) 0.3~0.8mm (Embossed) | 2.54mm(common) 1.0mm(common) 1.27mm | ≥1million times | 180~350G power | ≥0.3mm, Min.Space 0.5mm,Wire burrs <⅓, Wire notch w<¼ width. | ||||
Environmental Properties: | Working Temperature | Storage Temperature | Atmospheric Pressure | |||||
-20℃ ~ +70℃ | -30℃ ~ +90℃ Moisture 95%±5% | 86~106KPa | / | |||||
Printing Index: | Print Size Deviation | Print Overlay Deviation | Print Color Deviation | No creases&paint stripping. | ||||
±0.20mm | ± 0.1mm/100mm Clear window clean, uniform color. | Within 10% No ink scattering&defective handwriting. | No scratches, pin holes or impurities. |
Application: The membrane switch are widely used in Remote controls,Instrumentation, Electronic scales, mechatronic control, household appliances, Human-machine interface.
Workers are focusing on production, and we take each process seriously.
ISO9001 and ISO 14001 high quality certification, and honored to be Casio's reliable supplier.
