Membrane switch, also known as light touch keypad, adopts a whole sealed structure made of flat multi-layer combination, which is a new type of electronic component integrating light, machine and electricity by sealing the key switch, panel, mark, symbol display and liner together, and is a fundamental change in the appearance structure of electronic products, which can replace the keys of conventional discrete components and perform the tasks of operating system more reliably.
| Quantity: | |
|---|---|
Membrane switch, also known as light touch keypad, adopts a whole sealed structure made of flat multi-layer combination, which is a new type of electronic component integrating light, machine and electricity by sealing the key switch, panel, mark, symbol display and liner together, and is a fundamental change in the appearance structure of electronic products, which can replace the keys of conventional discrete components and perform the tasks of operating system more reliably.
OEM Specifications:
| Customized Membrane Switch | |||
| Item | Details | Item | Options |
| Overlay Material | PET-Autotex series F150/200/250, V150/200/250, EBG130/180/250 etc. PC-G11,G42,GE8010,GE 8B35,etc. | Special Requirement | Medical, Waterproof grade of IP67, UV-resistant , Anti-Bacteria ,High or Low Temperature |
| Flame Retardant | UL 94-V0 , UL 94-V2 | Connector | Female and Male Connectors or ZIF Connector |
| Ink | SEIKO , MERLIA ,etc. | Surface | Embossed or Flat |
| Printing | Pantone or RAL Chart. | Touch | Tactile |
| Dome | PET(cover layer) | Lights | LED Lights |
| Spacer | PET | Dimension | Customized Per Drawing |
| Metal Dome | φ6 ， φ8 ， φ10 ， φ12 | Printing | Follow the Artwork |
| Circuit | PET Printed | Application | Used For Electronic Control Panel |
| Rear Adhesive | 3M467, 3M468, 3M9495 , 3M9448A,etc. | Overlay Adhesive | 3M467, 3M468, 3M9495 , 3M9448A,etc. |
| Total Thickness | 0.2 - 5.0 mm | Artwork / Drawing Format | CoreDraw , AI , Auto CAD |
Product's Specifications:

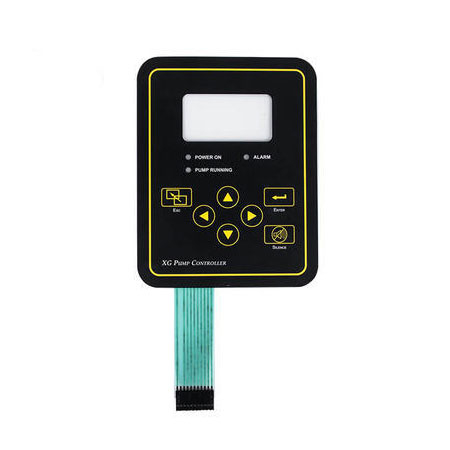

New Autotex F200 Overlay Non Tactile Membrane Switch.
Connector: Pin space standard is 2.54mm（common),1.0mm(common）and 1.27mm.
The six layers of membrane switch.
Technical Parameters:
| Electrical Properties: | Working Voltage | Electric Current | Contact Resistance | Insulation Resistance | PET Pressure | Rebound Time | Circuit Resistance | Ink Pressure |
| >25VDC | ≤50mA | 20~150Ω | ≥100MΩ (100VDC） | 2k DVC | ≤6ms | 50Ω,150Ω 350Ω,etc. | 100VDC | |
| Mechanical Properties: | Closed Displacement | Pin Space Standard | Reliability Lifetime | Work Power | Siver Paste Wire Width | |||
0.1~0.2mm (No Tactile) 0.3~0.8mm (Embossed) | 2.54mm（common） 1.0mm(common） 1.27mm | ≥1million times | 180~350G power | ≥0.3mm, Min.Space 0.5mm，Wire burrs ＜⅓， Wire notch ＜¼ width. | ||||
| Environmental Properties: | Working Temperature | Storage Temperature | Atmospheric Pressure | |||||
| -20℃ ~ +70℃ | -30℃ ~ +90℃ Moisture 95%±5% | 86~106KPa | / | |||||
| Printing Index: | Print Size Deviation | Print Overlay Deviation | Print Color Deviation | No creases&paint stripping. | ||||
| ±0.20mm | ± 0.1mm/100mm Clear window clean, uniform color. | Within 10% No ink scattering&defective handwriting. | No scratches, pin holes or impurities. | |||||
Workers are focusing on production, and we take each process seriously.
As the leading supplier, most of our advanced technology was certificated with patent.
RFQ(the problems you may concern)
Q1.What's your advantage?
=> The whole processing was controlled in our own factory, we can support you the best price and delivery terms.
Q2. Can you do the design for us?
=> Yes, our engineers having rich experience in wire wire harness and cable assembly design. Just let us know the detailed requirement, then we can send you the finished drawing for approve.
Q3. How long can i expect a sample?
=> After approved the drawing, 3-5days for production and 5-7days for transportation.
Q4. How to control quality?
=> We established a world class quality management system and improve the effectiveness of the system continuously.
Q5.Where is your factory located? Can i visit?
=> A: We located in Dongguan city. Sure, we welcome you to visit us at anytime.
Q6.what kind of payment does your company support?
=> TT, Western union, Paypal,Etc. (50% Deposit, 50% before shipment).
Let Us Be Your OEM Partner!
