Membrane switch is a set of key functions, indicating components, instrument panel as one of the operating system.It consists of four parts: panel, upper circuit, isolation layer and lower circuit. Press the membrane switch, the contact on the circuit deforms downward, and the electrode plate of the lower circuit contacts conduction, after the finger is released, the contact on the circuit bounces back, the circuit is disconnected, and the circuit triggers a signal.
Availability: | |
---|---|
Quantity: | |
Membrane switch has strict structure, beautiful appearance and good sealing. With moisture-proof, long service life and so on. It was widely used in electronic communication, electronic measuring instruments, industrial control, medical equipment, automotive industry, intelligent toys, household appliances and other fields.
OEM Specifications:
Customized Membrane Switch | |||
Item | Details | Item | Options |
Overlay Material | PET-Autotex series F150/200/250, V150/200/250, EBG130/180/250 etc. PC-G11,G42,GE8010,GE 8B35,etc. | Special Requirement | Medical, Waterproof grade of IP67, UV-resistant , Anti-Bacteria ,High or Low Temperature |
Flame Retardant | UL 94-V0 , UL 94-V2 | Connector | Female and Male Connectors or ZIF Connector |
Ink | SEIKO , MERLIA ,etc. | Surface | Embossed or Flat |
Printing | Pantone or RAL Chart. | Touch | Tactile |
Dome | PET(cover layer) | Lights | LED Lights |
Spacer | PET | Dimension | Customized Per Drawing |
Metal Dome | φ6 , φ8 , φ10 , φ12 | Printing | Follow the Artwork |
Circuit | PET Printed | Application | Used For Electronic Control Panel |
Rear Adhesive | 3M467, 3M468, 3M9495 , 3M9448A,etc. | Overlay Adhesive | 3M467, 3M468, 3M9495 , 3M9448A,etc. |
Total Thickness | 0.2 - 5.0 mm | Artwork / Drawing Format | CoreDraw , AI , Auto CAD |
Product's Specifications:

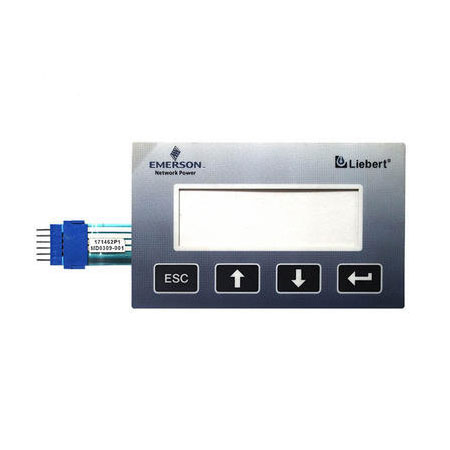

Custom Flat Simple Style Membrane Switch with Housing.
Membrane switch's structure:
Technical Parameters:
Electrical Properties: | Working Voltage | Electric Current | Contact Resistance | Insulation Resistance | PET Pressure | Rebound Time | Circuit Resistance | Ink Pressure |
>25VDC | ≤50mA | 20~150Ω | ≥100MΩ (100VDC) | 2k DVC | ≤6ms | 50Ω,150Ω 350Ω,etc. | 100VDC | |
Mechanical Properties: | Closed Displacement | Pin Space Standard | Reliability Lifetime | Work Power | Siver Paste Wire Width | |||
0.1~0.2mm (No Tactile) 0.3~0.8mm (Embossed) | 2.54mm(common) 1.0mm(common) 1.27mm | ≥1million times | 180~350G power | ≥0.3mm, Min.Space 0.5mm,Wire burrs <⅓, Wire notch<¼ width. | ||||
Environmental Properties: | Working Temperature | Storage Temperature | Atmospheric Pressure | |||||
-20℃ ~ +70℃ | -30℃ ~ +90℃ Moisture 95%±5% | 86~106KPa | / | |||||
Printing Index: | Print Size Deviation | Print Overlay Deviation | Print Color Deviation | No creases&paint stripping. | ||||
±0.20mm | ± 0.1mm/100mm Clear window clean, uniform color. | Within 10% No ink scattering&defective handwriting. | No scratches, pin holes or impurities. |
We have made many different types of membrane switch for our customers, which is available to custom make any shape.
Application: The membrane switch are widely used in Remote controls,Instrumentation, Electronic scales, mechatronic control, household appliances, Human-machine interface.
Workers are focusing on production, and we take each process seriously.
Membrane switch has strict structure, beautiful appearance and good sealing. With moisture-proof, long service life and so on. It was widely used in electronic communication, electronic measuring instruments, industrial control, medical equipment, automotive industry, intelligent toys, household appliances and other fields.
OEM Specifications:
Customized Membrane Switch | |||
Item | Details | Item | Options |
Overlay Material | PET-Autotex series F150/200/250, V150/200/250, EBG130/180/250 etc. PC-G11,G42,GE8010,GE 8B35,etc. | Special Requirement | Medical, Waterproof grade of IP67, UV-resistant , Anti-Bacteria ,High or Low Temperature |
Flame Retardant | UL 94-V0 , UL 94-V2 | Connector | Female and Male Connectors or ZIF Connector |
Ink | SEIKO , MERLIA ,etc. | Surface | Embossed or Flat |
Printing | Pantone or RAL Chart. | Touch | Tactile |
Dome | PET(cover layer) | Lights | LED Lights |
Spacer | PET | Dimension | Customized Per Drawing |
Metal Dome | φ6 , φ8 , φ10 , φ12 | Printing | Follow the Artwork |
Circuit | PET Printed | Application | Used For Electronic Control Panel |
Rear Adhesive | 3M467, 3M468, 3M9495 , 3M9448A,etc. | Overlay Adhesive | 3M467, 3M468, 3M9495 , 3M9448A,etc. |
Total Thickness | 0.2 - 5.0 mm | Artwork / Drawing Format | CoreDraw , AI , Auto CAD |
Product's Specifications:
Custom Flat Simple Style Membrane Switch with Housing.
Membrane switch's structure:
Technical Parameters:
Electrical Properties: | Working Voltage | Electric Current | Contact Resistance | Insulation Resistance | PET Pressure | Rebound Time | Circuit Resistance | Ink Pressure |
>25VDC | ≤50mA | 20~150Ω | ≥100MΩ (100VDC) | 2k DVC | ≤6ms | 50Ω,150Ω 350Ω,etc. | 100VDC | |
Mechanical Properties: | Closed Displacement | Pin Space Standard | Reliability Lifetime | Work Power | Siver Paste Wire Width | |||
0.1~0.2mm (No Tactile) 0.3~0.8mm (Embossed) | 2.54mm(common) 1.0mm(common) 1.27mm | ≥1million times | 180~350G power | ≥0.3mm, Min.Space 0.5mm,Wire burrs <⅓, Wire notch<¼ width. | ||||
Environmental Properties: | Working Temperature | Storage Temperature | Atmospheric Pressure | |||||
-20℃ ~ +70℃ | -30℃ ~ +90℃ Moisture 95%±5% | 86~106KPa | / | |||||
Printing Index: | Print Size Deviation | Print Overlay Deviation | Print Color Deviation | No creases&paint stripping. | ||||
±0.20mm | ± 0.1mm/100mm Clear window clean, uniform color. | Within 10% No ink scattering&defective handwriting. | No scratches, pin holes or impurities. |
We have made many different types of membrane switch for our customers, which is available to custom make any shape.
Application: The membrane switch are widely used in Remote controls,Instrumentation, Electronic scales, mechatronic control, household appliances, Human-machine interface.
Workers are focusing on production, and we take each process seriously.
1. Are you a manufacturer or trading company ?
We are an experienced manufacturer with more than 30 years history and we also have professional overseas service team. With 160 employees and 13000 square meter factory .
2. Can you provide "Free Samples" ?
Stock Samples : Yes , we could provide similar samples we have in store if you could pay the express freight cost.
Customized Samples : Could provide 5 free samples after we received the set up cost.
3. Hlow long is your L/T ?
Tooling & Sample L/T : 10 days or so
Mass Production L/T : 15 days or so
4. What is the MOQ ?
Generally, we require 1000 pcs at least.
5. What is the terms of payment ?
Mainly receive T/T
1. Are you a manufacturer or trading company ?
We are an experienced manufacturer with more than 30 years history and we also have professional overseas service team. With 160 employees and 13000 square meter factory .
2. Can you provide "Free Samples" ?
Stock Samples : Yes , we could provide similar samples we have in store if you could pay the express freight cost.
Customized Samples : Could provide 5 free samples after we received the set up cost.
3. Hlow long is your L/T ?
Tooling & Sample L/T : 10 days or so
Mass Production L/T : 15 days or so
4. What is the MOQ ?
Generally, we require 1000 pcs at least.
5. What is the terms of payment ?
Mainly receive T/T
