Membrane switch is a set of key functions, indicating components, instrument panel as one of the operating system.It consists of four parts: panel, upper circuit, isolation layer and lower circuit. Press the membrane switch, the contact on the circuit deforms downward, and the electrode plate of the lower circuit contacts conduction, after the finger is released, the contact on the circuit bounces back, the circuit is disconnected, and the circuit triggers a signal.
| Quantity: | |
|---|---|
Membrane switch is a set of key functions, indicating components, instrument panel as one of the operating system. It consists of four parts: panel, upper circuit, isolation layer and lower circuit.
OEM Specifications:
| Customized Membrane Switch | |||
| Item | Details | Item | Options |
| Overlay Material | PET-Autotex series F150/200/250, V150/200/250, EBG130/180/250 etc. PC-G11,G42,GE8010,GE 8B35,etc. | Special Requirement | Medical, Waterproof grade of IP67, UV-resistant , Anti-Bacteria ,High or Low Temperature |
| Flame Retardant | UL 94-V0 , UL 94-V2 | Connector | Female and Male Connectors or ZIF Connector |
| Ink | SEIKO , MERLIA ,etc. | Surface | Embossed or Flat |
| Printing | Pantone or RAL Chart. | Touch | Tactile |
| Dome | PET(cover layer) | Lights | LED Lights |
| Spacer | PET | Dimension | Customized Per Drawing |
| Metal Dome | φ6 ， φ8 ， φ10 ， φ12 | Printing | Follow the Artwork |
| Circuit | PET Printed | Application | Used For Electronic Control Panel |
| Rear Adhesive | 3M467, 3M468, 3M9495 , 3M9448A,etc. | Overlay Adhesive | 3M467, 3M468, 3M9495 , 3M9448A,etc. |
| Total Thickness | 0.2 - 5.0 mm | Artwork / Drawing Format | CoreDraw , AI , Auto CAD |
Product's Specification:

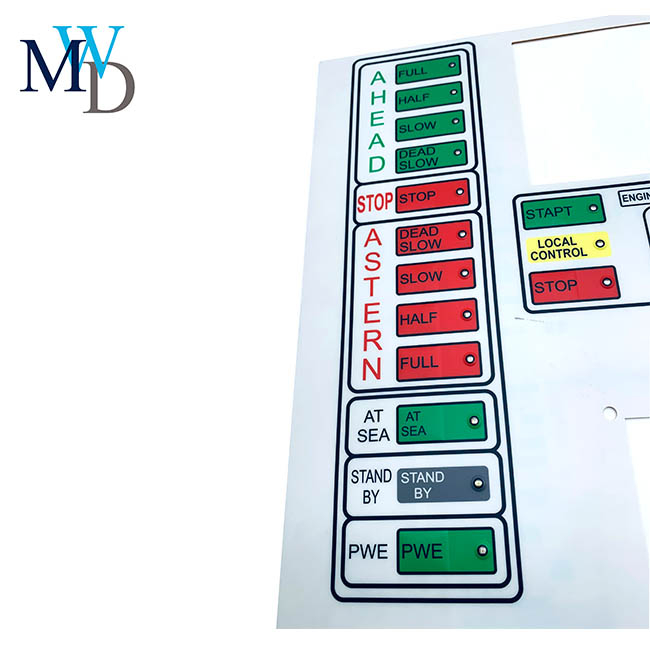

Digital Printing Transparent Window Membrane Switches.

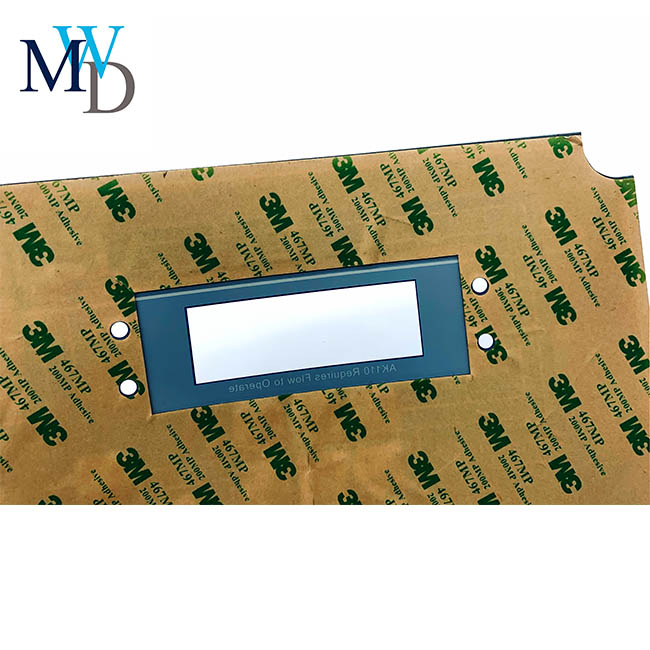

Backside Visual-It was made of 3M467 glue, we are using imported 3m adhesive to guanrantee the best quality.
We are using stainless Steel Cross dome, available sizes are 8.4, 10, 12, 14 ,16mm, etc. Recommended size 10~12mm, which are more matching the actual finger pressure use.
Connector: Pin space standard is 2.54mm（common),1.0mm(common）and 1.27mm.
It consists of 6 main layers like overlay, spacer adhesive, fixed dome tape, circuit adhesive, lower circuitry and back adhesive tape.
We have made many different types of membrane switch for our customers, which is available to custom make any shape.
The applications of membrane switches are Remote controls, Instrumentation, Electronic scales, household appliances, Human-machine interface, mechatronic control and so on.
ISO 9001 and ISO 14001 quality certification, Casio's trouble-free supplier honor certificate.
RFQ(the problems you may concern)
Q1.What's your advantage?
=> The whole processing was controlled in our own factory, we can support you the best price and delivery terms.
Q2. Can you do the design for us?
=> Yes, our engineers having rich experience in wire wire harness and cable assembly design. Just let us know the detailed requirement, then we can send you the finished drawing for approve.
Q3. How long can i expect a sample?
=> After approved the drawing, 3-5days for production and 5-7days for transportation.
Q4. How to control quality?
=> We established a world class quality management system and improve the effectiveness of the system continuously.
Q5.Where is your factory located? Can i visit?
=> A: We located in Dongguan city. Sure, we welcome you to visit us at anytime.
Q6.what kind of payment does your company support?
=> TT, Western union, Paypal,Etc. (50% Deposit, 50% before shipment).
