A graphic overlay, sometimes called a nameplate, is a printed graphic surface that is placed over top of the internal electronics of a product. The overlay serves multiple purposes. First, it protects the sensitive materials and components from environmental conditions and wear and tear.
It was widely used in electronic communication, electronic measuring instruments, industrial control, medical equipment, automotive industry, intelligent toys, household appliances and other fields.
Availability: | |
---|---|
Quantity: | |
A graphic overlay, sometimes called a nameplate, is a printed graphic surface that is placed over top of the internal electronics of a product. The overlay serves multiple purposes. First, it protects the sensitive materials and components from environmental conditions and wear and tear.
Technical Parameters:
Technical Details | Without tactile feedback | With tactile feedback by snap dome | With tactile feedback by key embossing |
Mechanical Parameters | Keystroke force : 2 N +/- 20% | Keystroke force : 2.5 N +/- 20% | Keystroke force : 1 to 4 N +/- 30 % |
Bounce Distance: 0,21 mm +/-15% | Bounce Distance : 0,48 mm +/-15% | Bounce Distance : 0,5 to 1 mm +/-15% | |
Contact type : Silver | Contact type : Dome+Silver | Contact type : Silver | |
Lifespan: 10 000 000 | Lifespan : 1 000 000 | Lifespan: 1 000 000 | |
Environmental Parameters | Work Temp. - 25°C - + 65°C | Work Temp.: - 25°C - + 65°C | Work Temp. : - 25°C - + 40°C |
Storage Temp. : - 30°C - + 85°C | Storage Temp. : - 30°C - + 85°C | Storage Temp.: - 30°C - + 70°C | |
Protection Class : IP 65 | Protection Class : IP 65 | Protection Class : IP 65 | |
Electrical Parameters | Normal operating voltage: 24 V Max. working voltage : 50 V Min.operating voltage: 1 V Normal operating current: 30 mA Max. controllable power : 500 mW Contact line resistivity : 1 ohm/cm (1 mm spacing) Dielectric strength : 250 Vrms. Insulation impedance at 100 V : > 100 Mohms Max.contact bounce : < 5 ms Compatible with TTL and CMOS circuits |
Product's Specifications:

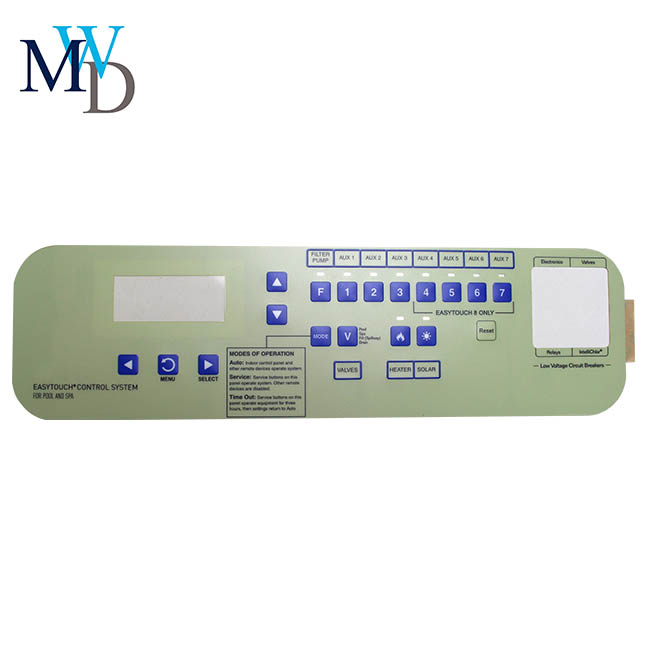

Flexible PC Control Panel Sticker Printing Graphic Overlay.
Processing the adhesive at backside, the waterproof rating can reach IP66 by using 3M300LSE adhesive. this product is mostly used in the kitchen, medical outdoor rain or wet environment.
Silk screen printing the different patone colos, the printing color deviation is in 10%.
Maxswall customized different kinds of graphic overlays as per customer's artwork.
Careful quality control and meticulous packaging,we take every step of the process seriously.
ISO 9001 and ISO 14001 quality certification, Casio's trouble-free supplier honor certificate.
Why Choose us?
>> Leading manufacturer with 30+ years experience.
>> Perfect quality control system. ISO9001&ISO14001 quality certificated.
>> Free for product design, free for laser sample.
>> Full range of product, your one-stop OEM manufacturer.
>> Professional technical support and after-sales service.
>> Good delivery cooperation to match your schedule.
>> Main serving customers are: Casio, Poly, JBL, Harman,SHURE, SENHEISER, Panasonic,Dyson,Pentair,etc.
Let Us To Be Your Best OEM Partner!
A graphic overlay, sometimes called a nameplate, is a printed graphic surface that is placed over top of the internal electronics of a product. The overlay serves multiple purposes. First, it protects the sensitive materials and components from environmental conditions and wear and tear.
Technical Parameters:
Technical Details | Without tactile feedback | With tactile feedback by snap dome | With tactile feedback by key embossing |
Mechanical Parameters | Keystroke force : 2 N +/- 20% | Keystroke force : 2.5 N +/- 20% | Keystroke force : 1 to 4 N +/- 30 % |
Bounce Distance: 0,21 mm +/-15% | Bounce Distance : 0,48 mm +/-15% | Bounce Distance : 0,5 to 1 mm +/-15% | |
Contact type : Silver | Contact type : Dome+Silver | Contact type : Silver | |
Lifespan: 10 000 000 | Lifespan : 1 000 000 | Lifespan: 1 000 000 | |
Environmental Parameters | Work Temp. - 25°C - + 65°C | Work Temp.: - 25°C - + 65°C | Work Temp. : - 25°C - + 40°C |
Storage Temp. : - 30°C - + 85°C | Storage Temp. : - 30°C - + 85°C | Storage Temp.: - 30°C - + 70°C | |
Protection Class : IP 65 | Protection Class : IP 65 | Protection Class : IP 65 | |
Electrical Parameters | Normal operating voltage: 24 V Max. working voltage : 50 V Min.operating voltage: 1 V Normal operating current: 30 mA Max. controllable power : 500 mW Contact line resistivity : 1 ohm/cm (1 mm spacing) Dielectric strength : 250 Vrms. Insulation impedance at 100 V : > 100 Mohms Max.contact bounce : < 5 ms Compatible with TTL and CMOS circuits |
Product's Specifications:
Flexible PC Control Panel Sticker Printing Graphic Overlay.
Processing the adhesive at backside, the waterproof rating can reach IP66 by using 3M300LSE adhesive. this product is mostly used in the kitchen, medical outdoor rain or wet environment.
Silk screen printing the different patone colos, the printing color deviation is in 10%.
Maxswall customized different kinds of graphic overlays as per customer's artwork.
Careful quality control and meticulous packaging,we take every step of the process seriously.
ISO 9001 and ISO 14001 quality certification, Casio's trouble-free supplier honor certificate.
Why Choose us?
>> Leading manufacturer with 30+ years experience.
>> Perfect quality control system. ISO9001&ISO14001 quality certificated.
>> Free for product design, free for laser sample.
>> Full range of product, your one-stop OEM manufacturer.
>> Professional technical support and after-sales service.
>> Good delivery cooperation to match your schedule.
>> Main serving customers are: Casio, Poly, JBL, Harman,SHURE, SENHEISER, Panasonic,Dyson,Pentair,etc.
Let Us To Be Your Best OEM Partner!
