Membrane switch panel is a kind of electronic component which is composed of rigid or flexible printed circuit board as substrate, mounted with tactile or non-tactile keys, and then covered with plastic membrane panel printed with colorful decorative patterns, integrating switching function and decorative function, and is a new type of human-machine interface. The panel layer is generally made of PET, PC and other colorless light-transmitting sheet screen-printed with exquisite patterns and text below 0.25MM. Because the main role of the panel layer is to play the role of logo and keypad, the selected material must have high transparency, high ink adhesion, high elasticity, high toughness and other characteristics
| Quantity: | |
|---|---|
Membrane switch panel is a kind of electronic component which is composed of rigid or flexible printed circuit board as substrate, mounted with tactile or non-tactile keys, and then covered with plastic membrane panel printed with colorful decorative patterns, integrating switching function and decorative function, and is a new type of human-machine interface.
The panel layer is generally made of PET, PC and other colorless light-transmitting sheet screen-printed with exquisite patterns and text below 0.25MM.
OEM Specifications:
| Customized Membrane Switch overlay | |||
| Item | Details | Item | Options |
| Overlay Material | PET-Autotex series F150/200/250, V150/200/250, EBG130/180/250 etc. PC-G11,G42,GE8010,GE 8B35,etc. | Special Requirement | Medical, Waterproof grade of IP67, UV-resistant , Anti-Bacteria ,High or Low Temperature |
| Ink | SEIKO , MERLIA ,etc. | Surface | Embossed or Flat |
| Printing | Pantone or RAL Chart. | Dimension | Customized Per Drawing |
| Application | Eltronic Control Panel | Printing | Follow the Artwork |
| Thickness | Customized | Artwork format | CoreDraw , AI , Auto CAD ,etc. |
| Overlay Adhesive | 3M467, 3M468, 3M9495 , 3M9448A,etc. | ||
Product's Specifications:

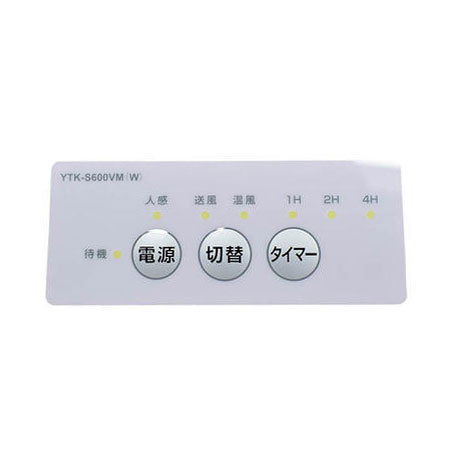

Branded logo graphic overlay label stickers.
Silk printing the pantone colors according to customer's artwork.
Punching the window and holes.
Embossed key on the surface.
The membrane switches are widely used in Human-machine interface, Remote controls, Instrumentation, Electronic scales, household appliances, mechatronic control and so on.
Patents for most of our advanced technologies.
Our skilled workers are serious to each process, make sure all of orders are delieveried in high quality.
RFQ(the problems you may concern):
Q1.What's your advantage?
=> The whole processing was controlled in our own factory, we can support you the best price and delivery terms.
Q2. Can you do the design for us?
=> Yes, our engineers having rich experience in wire wire harness and cable assembly design. Just let us know the detailed requirement, then we can send you the finished drawing for approve.
Q3. How long can i expect a sample?
=> After approved the drawing, 3-5days for production and 5-7days for transportation.
Q4. How to control quality?
=> We established a world class quality management system and improve the effectiveness of the system continuously.
Q5.Where is your factory located? Can i visit?
=> A: We located in Dongguan city. Sure, we welcome you to visit us at anytime.
Q6.what kind of payment does your company support?
=> TT, Western union, Paypal,Etc. (50% Deposit, 50% before shipment)
Let Us Be Your Best OEM Partner!
